Channeling RF Energy
In addition to electronically controlled devices, MAG designs and produces waveguide components as an original equipment manufacturer, and in the event that the original manufacturer is no longer in business or unwilling to produce legacy waveguide components. Click HERE for downloadable brochures detailing MAG products.

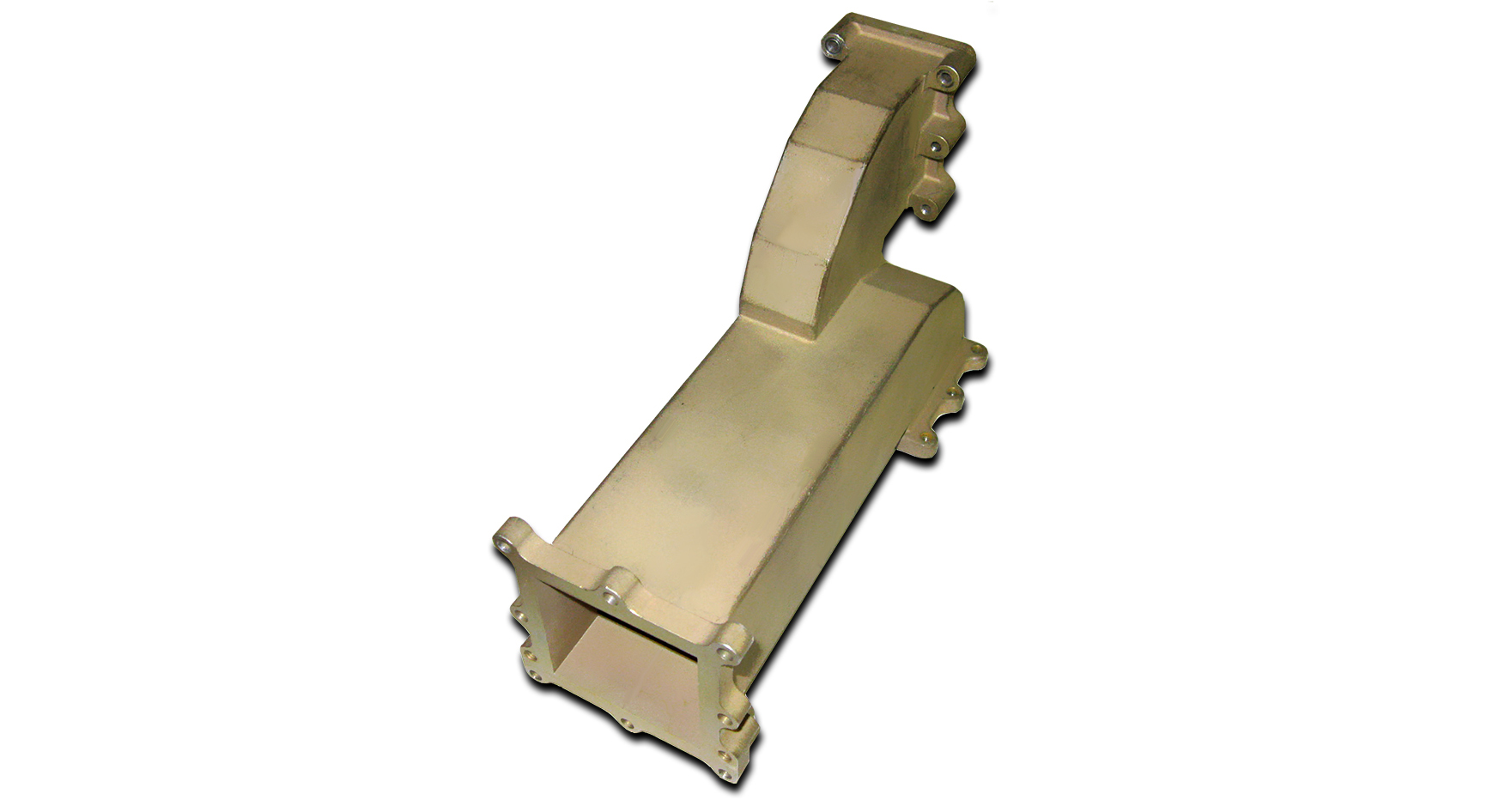

S-Band Septum Polarizers
MAG is the design authority and OEM for the septum polarizers (SPs) for an airborne radar deployed by U.S. and allied forces worldwide.

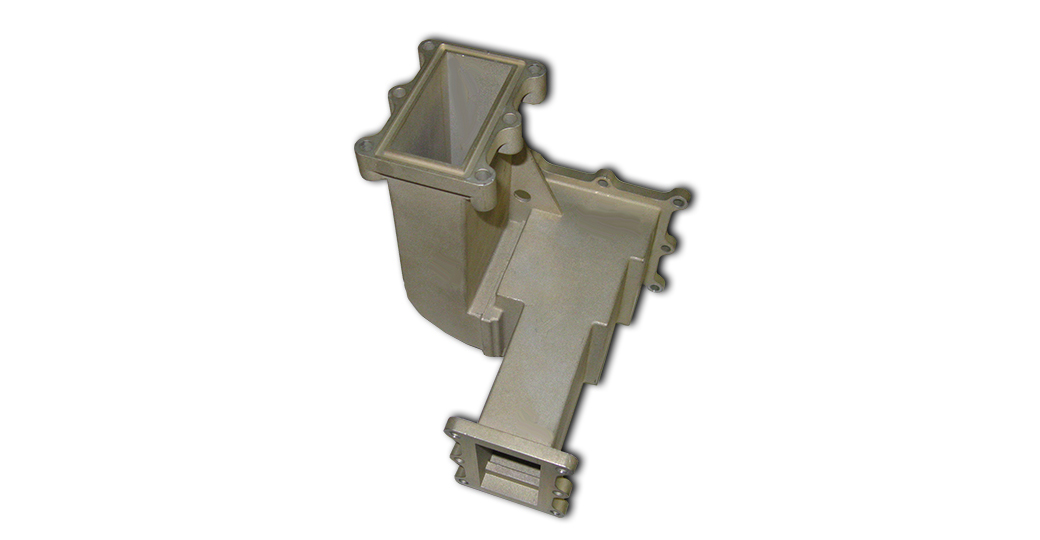

S-Band Orthomode Junctions
MAG is the design authority and OEM for the orthomode junctions (OMJs) for an airborne radar deployed by U.S. and allied forces worldwide.

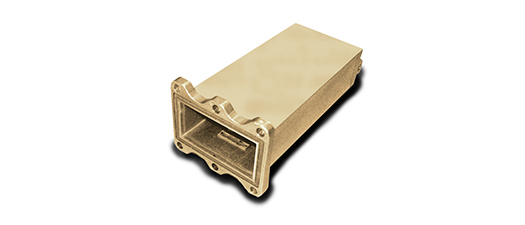

S-Band Waveguide Loads
MAG responded to fulfill a DMSMS requirement, and has built and is qualified to supply these waveguide loads deployed on an airborne radar.
X-Band Waveguide Rotary Joints
MAG responded to a DMSMS request and has built and is qualified to provide this rotary joint for use in an approach control radar.
X-Band Feed Horn and Feed Network
MAG designed and built an X-Band feed horn and feed network assembly for a radar simulator providing LHCP and RHCP at transmit and receive.

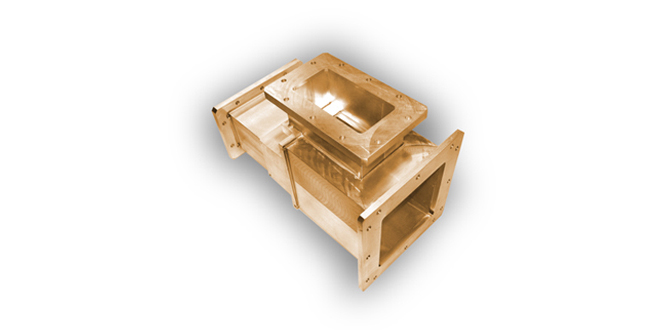

L-Band Orthomode Junction
Due to the unavailability of this component in L-Band, MAG designed and fabricated this orthomode junction (OMJ) waveguide component.

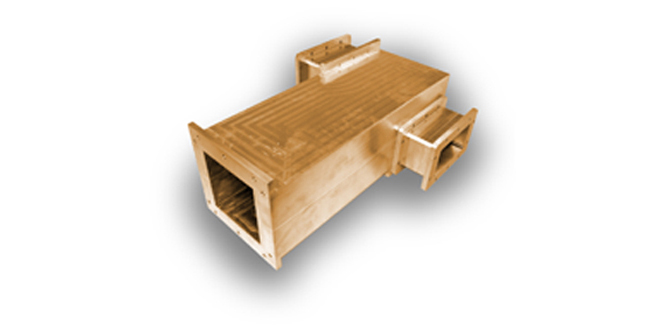

L-Band Septum Polarizer
Due to the unavailability of this component in L-Band, MAG designed and fabricated this septum polarizer (SP) waveguide component.

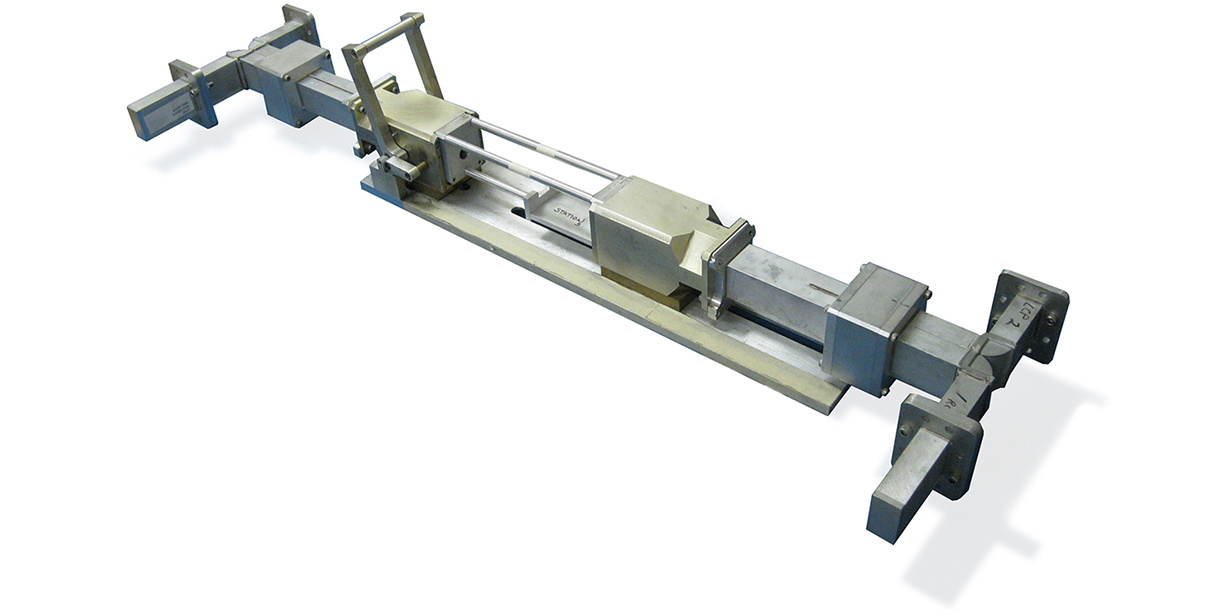

RF Waveguide Test Assemblies
For product testing, MAG designs and fabricates RF test set-ups for in-house use. MAG will leverage this expertise for customer requirements.

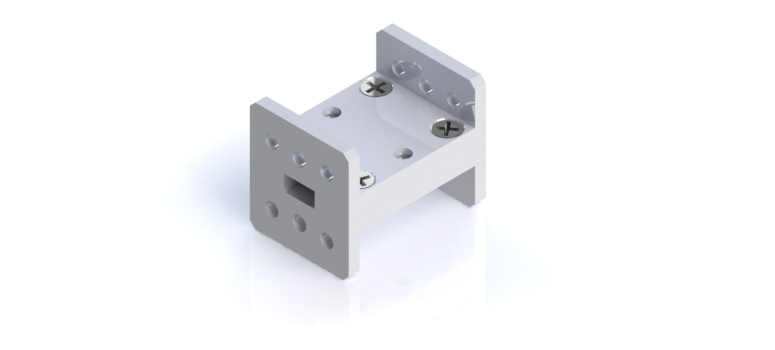

RF Waveguide Transformers
MAG designs and fabricates waveguide transformers. Transformers have been provided by MAG for system use from Ka- to L-Band.
