Fulfilling a Variety of RF System Needs with a Wide Array of Solutions

Electronic Devices

For Power and Control

Drivers are available for both rotary-field and dual-mode phase shifters, in either commercial or MIL versions, as well as for MAG's other products. Other electronic devices are developed and built according to system requirements. Shown below are some of the electronic devices developed by MAG. Click HERE for downloadable brochures detailing electronic devices and other MAG products.

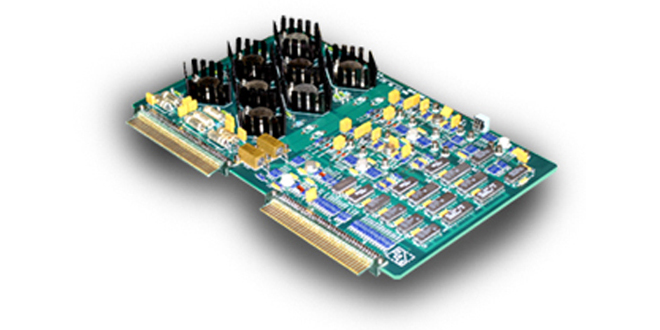

S-Band Rotary-Field Drivers

MAG supports customer requirements by designing and fabricating drivers as exemplified by those used on a widely deployed ground-based 3D air defense radar.

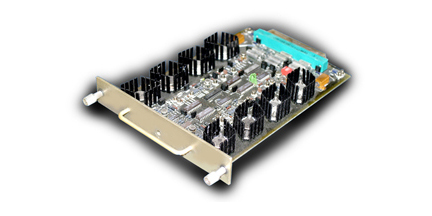

S-Band Rotary-Field Drivers, Rack-Mounted

MAG provided drivers for another ground-based 3D air defense radar with specific rack-mounting requirements. MAG can also provide interface cable assemblies as required.

Eight-Channel Dual-Mode Module Drivers

MAG designed and builds phase control modules for a threat system, driven by an integral eight-channel driver. Built-in-test circuitry is incorporated in the driver.

X-Band Beam Steering Computer

A beam steering computer was designed and built by MAG for an X-Band test range instrumentation antenna. MAG also designed and built the antenna subsystem.

S-Band Rotary-Field Drivers and Card Cage

MAG designed and built drivers for S-Band phase shifters used in radome testing. A custom rack-mount card card was also provided by MAG to house and protect the drivers.

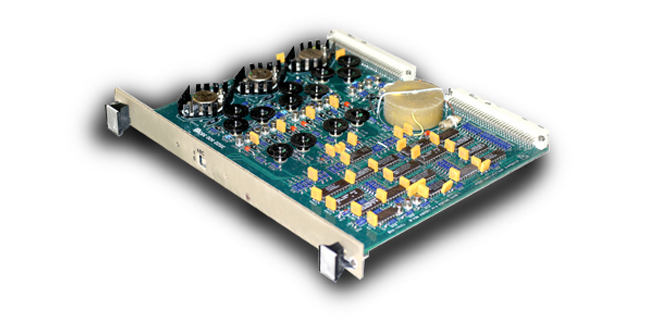

L-Band Rotary-Field Drivers, Rack-Mounted

MAG's single power supply drivers are provided for a ship-based 3D air defense radar. Customer specified mounting and electrical interfaces are provided.

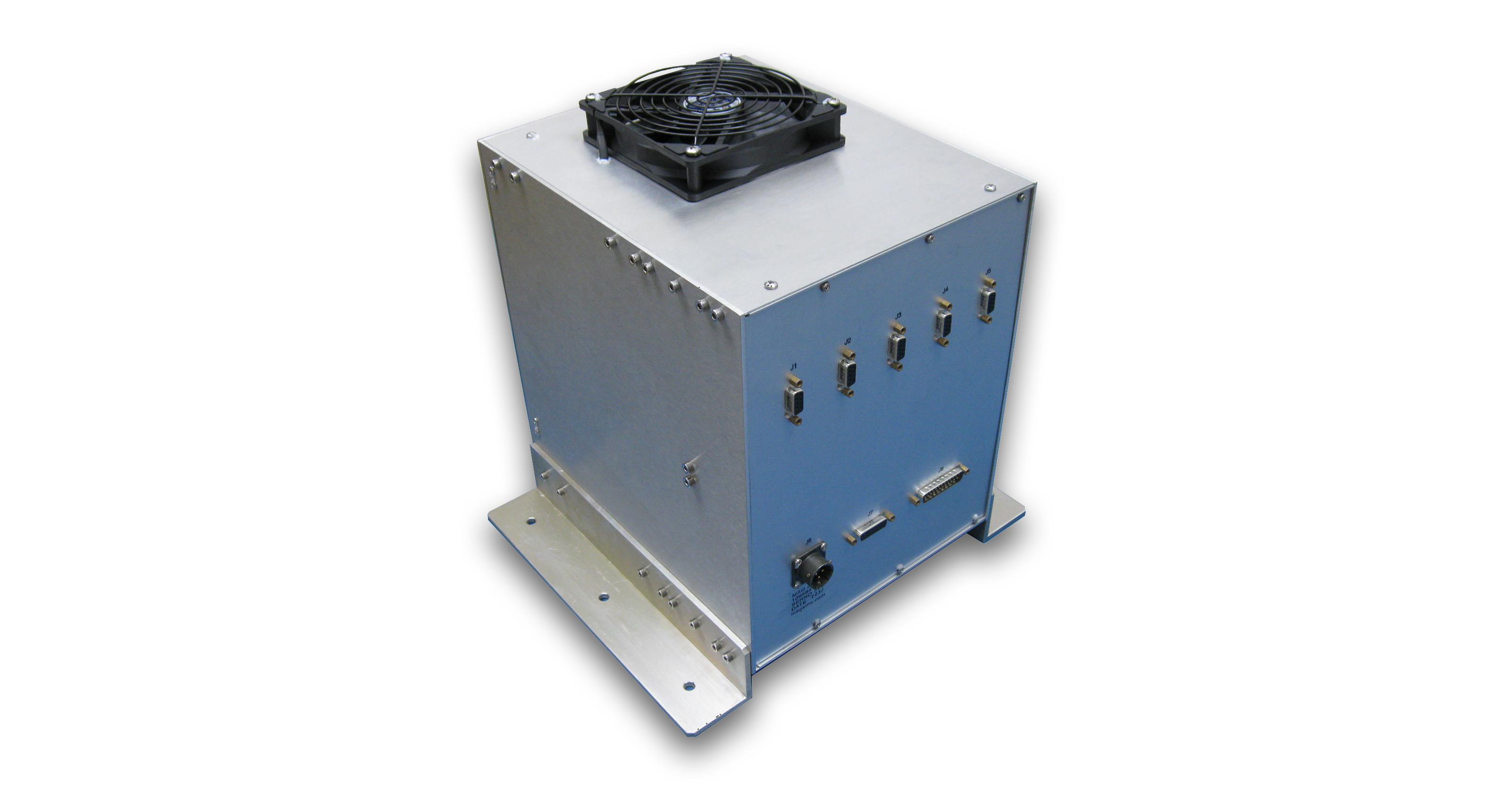

S-Band Rotary-Field Drivers and Enclosure

Several S-Band rotary-field drivers were mounted in a custom enclosure. MAG provided cabling to interface between each driver and phase shifter pair.

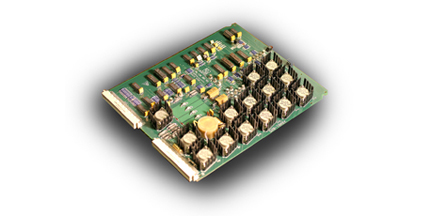

C-Band Rotary-Field Drivers

MAG's drivers are designed to meet customer power and interface necessities. This driver is deployed on both land and sea with two different radar systems.
